mazeDRIP 100m PC Watering Kit

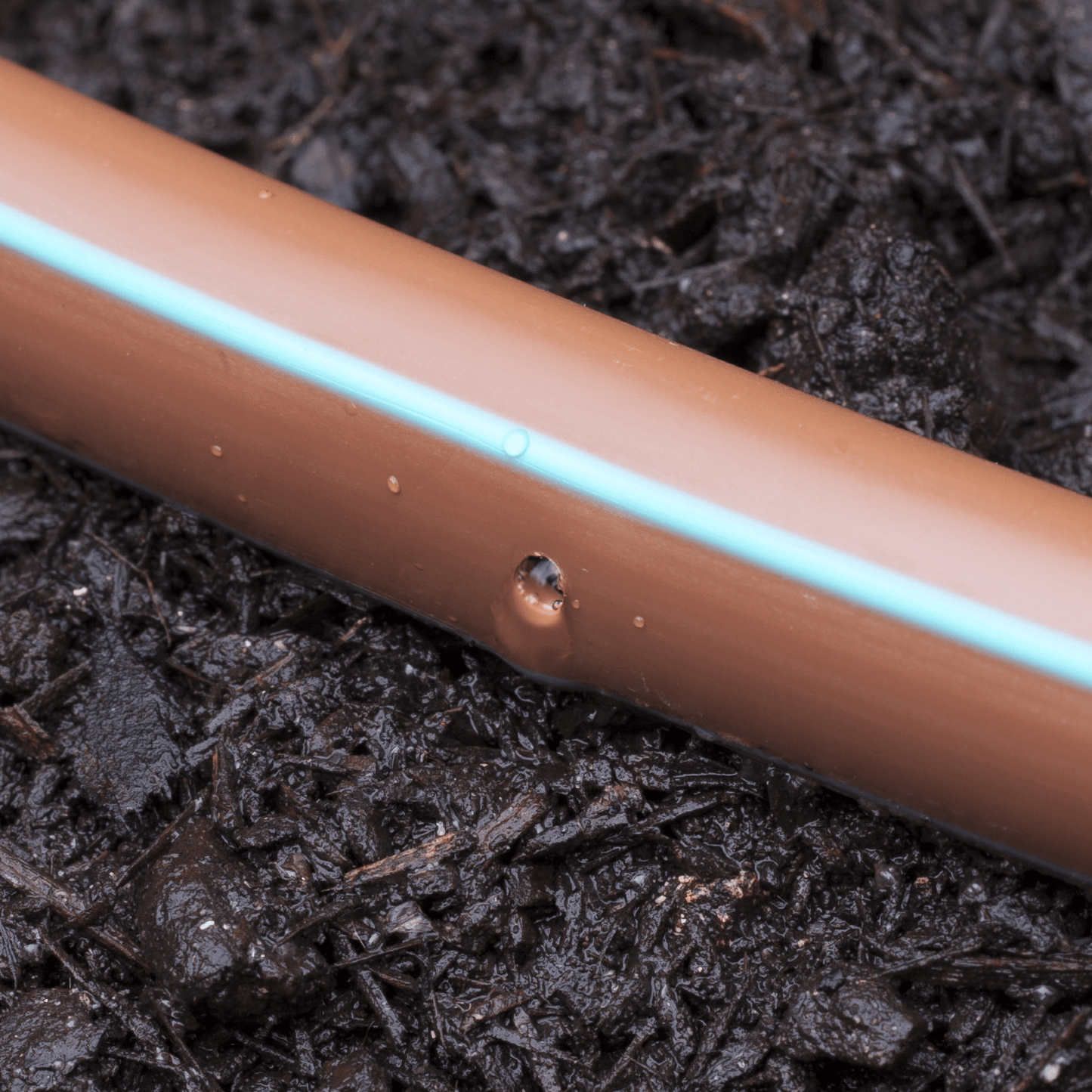

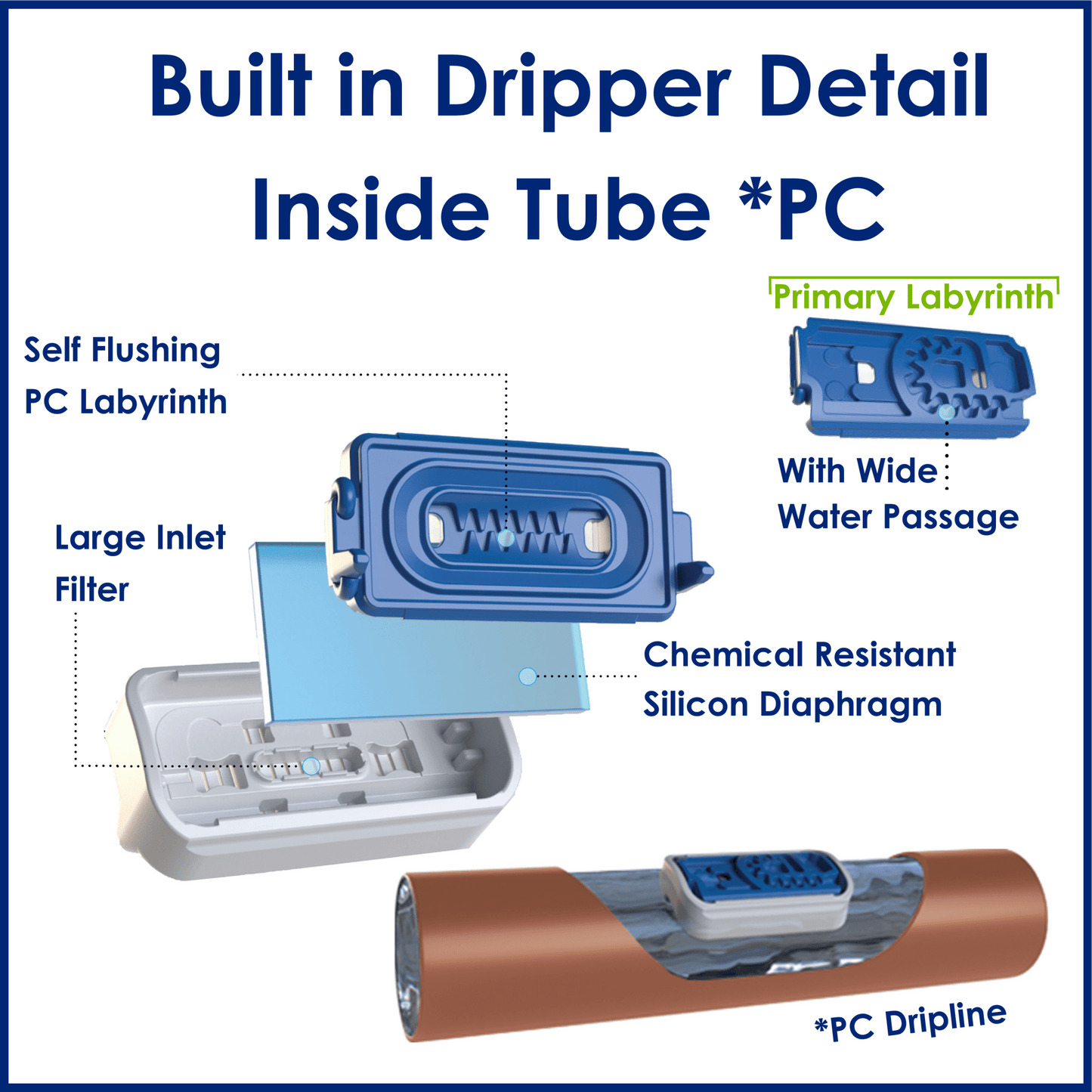

Reduce water usage by at least 60% by delivering water directly to your garden and plants! The mazeDRIP 100m PC Watering Kit employs Pressure Compensated (PC) drippers to deliver the optimum amount of water required to satisfy the thirst requirements of your prized garden without the evaporation incurred through other methods of irrigation. Comprising a filter, diaphragm, and labyrinth, each of the PC drippers embedded within the dripline utilize control flow technology to ensure that water is delivered to your garden in the most economical and effective way possible. The PC dripline ensures that the first dripper delivers its water allocation as effectively as the last dripper on the line. No loss of flow rate! No loss of pressure! Don’t waste your time, money and energy simply watering your weeds. Whatever your garden’s water requirements, the 100m PC Dripline Watering Kit is sure to quench the water needs of even the thirstiest plant in your collection. The Kit includes a pressure reducer that connects directly to your tap as well as other connections to configure the dripline to suit your garden. *For gravity fed watering systems we recommend using a non-PC drip line

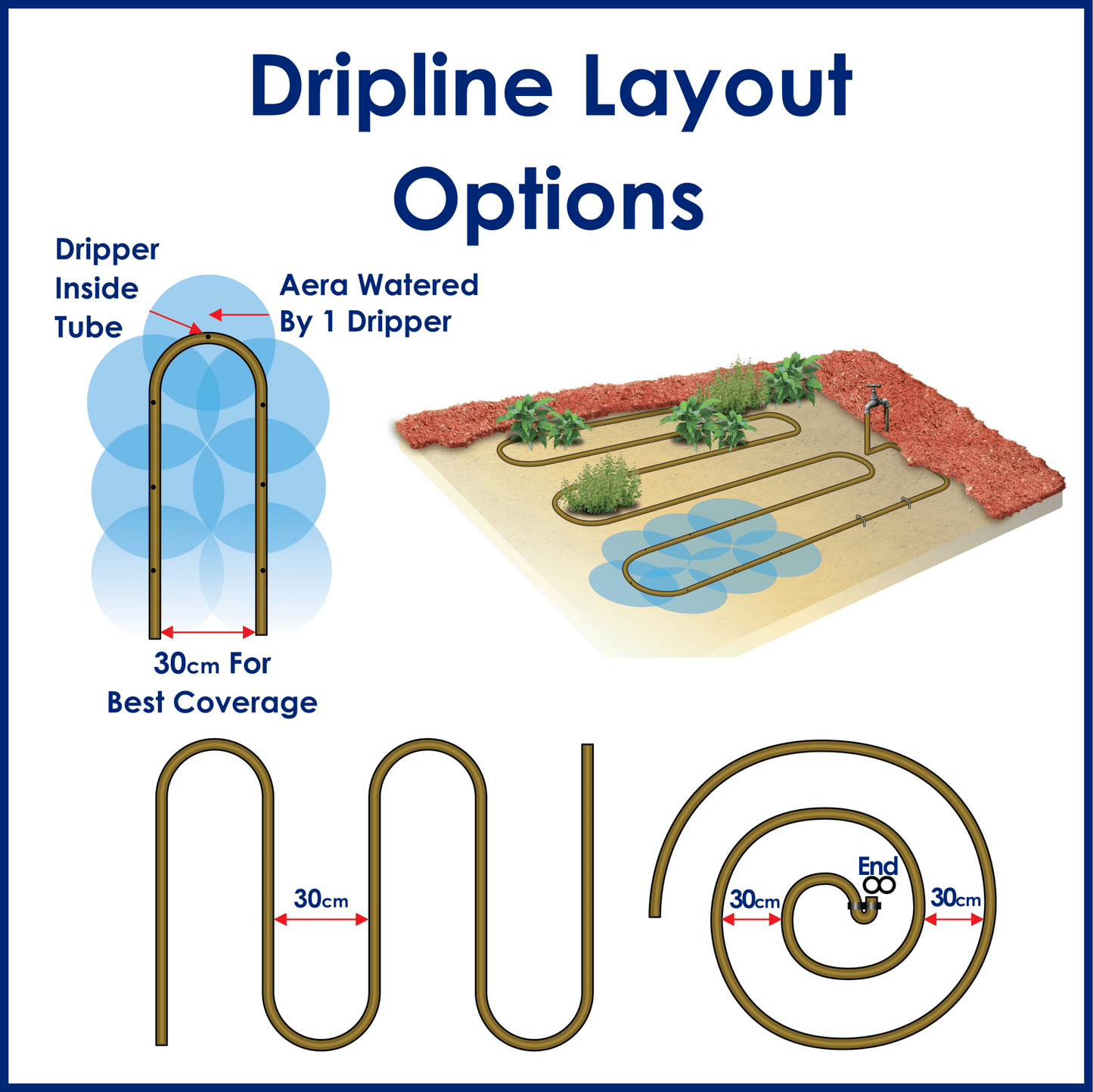

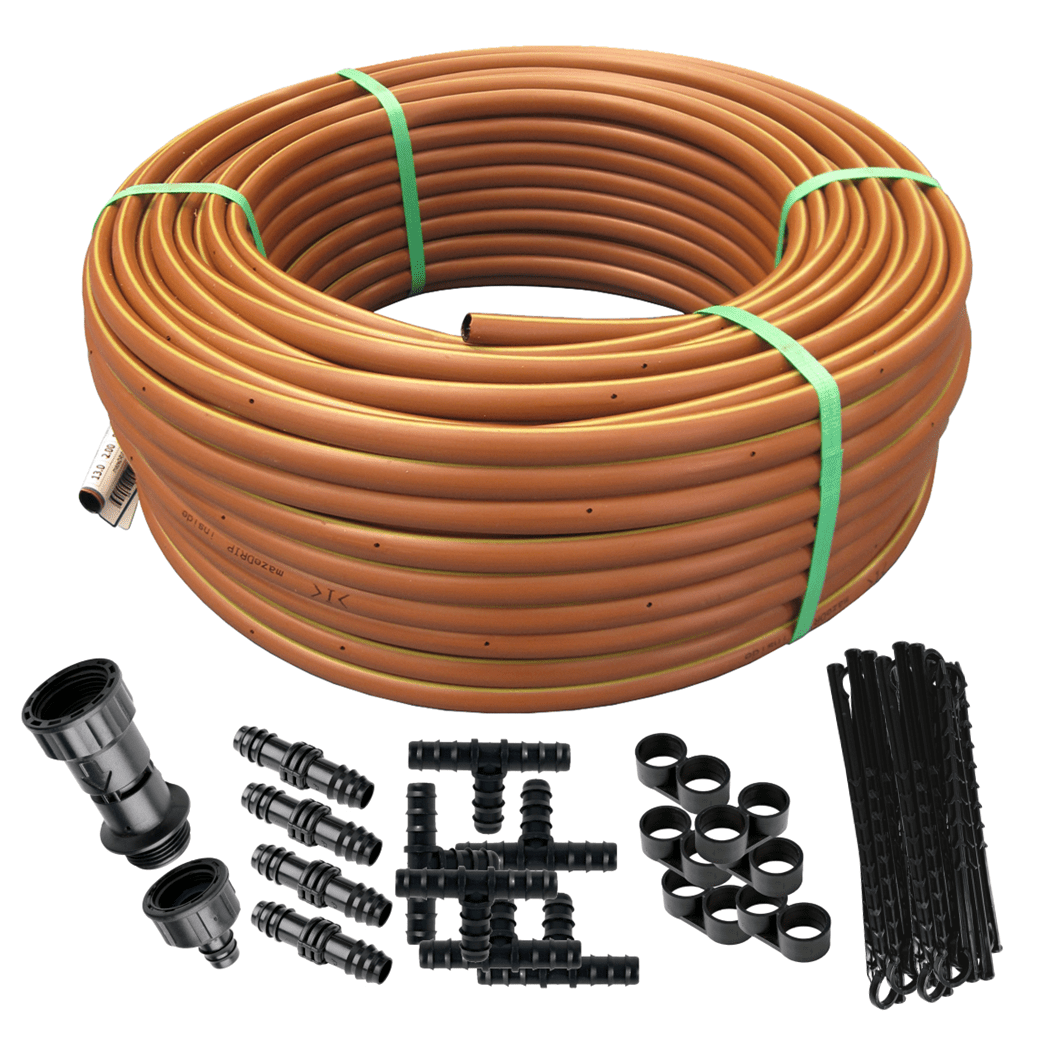

Kit includes - 1 x 100m PC mazeDRIP, 20 x Ground Spikes, 1 x Pressure Reducer (1.8Bar), 1 x Tap Connector (3/4'), 4 x Joiner (13mm), 6 x Tee (13mm) & 6 x End (13mm) Dripper Type - Inline PC Drippers Internal Tube diameter - 12.9mm Flow rate - 1.6L p/h Dripper Spacing - 30cm apart Operating Pressure - 40 kPa - 250 kPa Maximum run length (m) on flat ground (based on 5% flow variation) 50kPa - 40m 100kPa - 73m 150kPa - 90m 200kPa - 100m 250kPa - 110m Maze Code - MDK-100P Country of Origin - Australia Warranty - 10 Year

Download Manual
